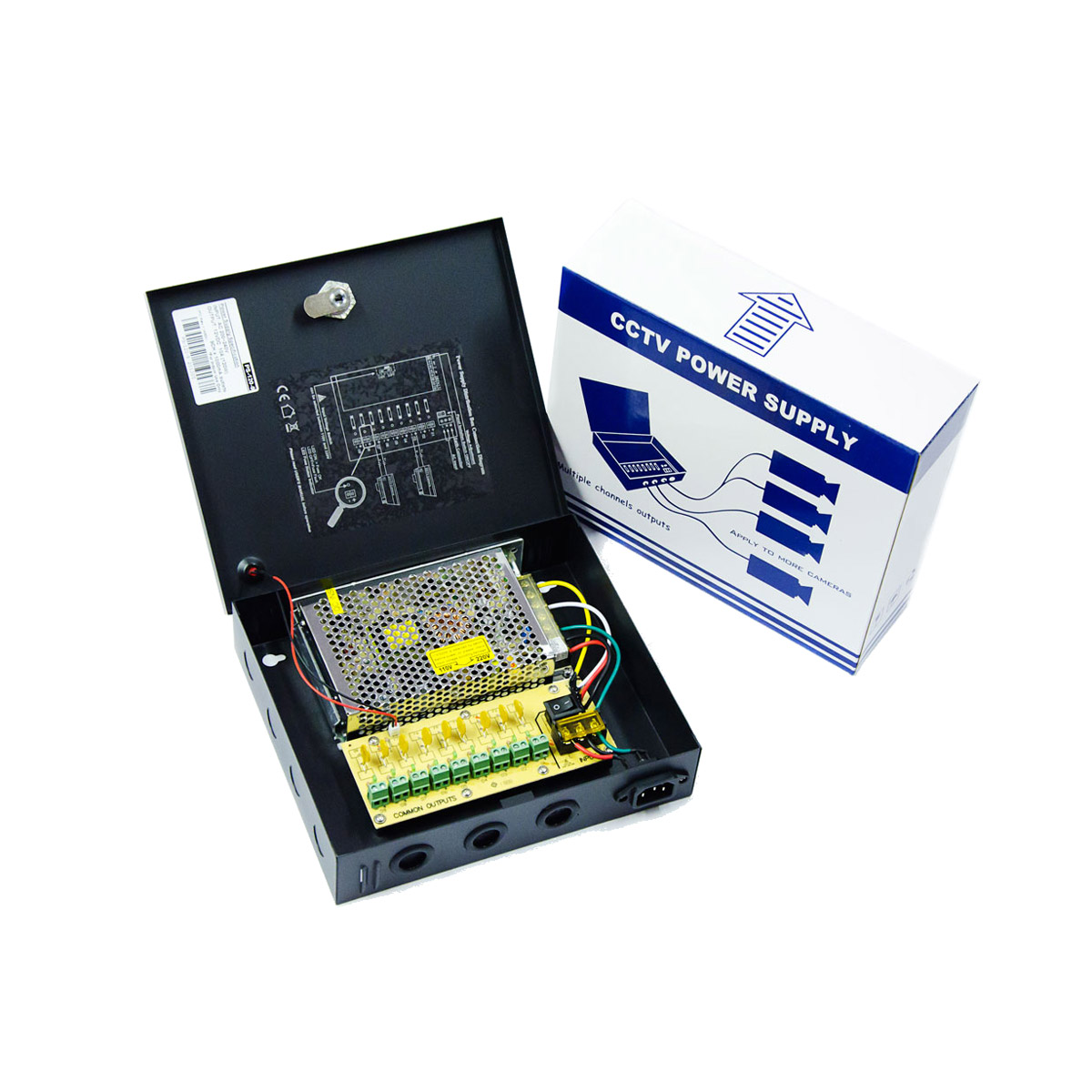

9 Channel 10amp Power Supply 12V
9 x 12VDC individually fused outputs
AC power LED indicator
Power ON/OFF switch
Self reset
Lockable Box
R 662.00 incl. VAT
Product Description
9 Channel 10amp Power Supply 12V
Specification
- Input Voltage AC90-264V
- Input Voltage Frequency 50/60Hz
- Output Voltage 12 VDC+10%
- Total Output Current 10A (1A/output,9 channels for 9 sets security cameras)
- Total Outputs 120W
- Fuse Type Glass Fuse
- Fuse Rating 1 Amps / 250VAC
- Each output has individual fuse and LED indicator, when
problem occurs, only affect the individual output, other
outputs still working - When short condition occurs, individual fuse will open the
circuit, when condition removed, replacing another new fuse
will back to close. - Overload protection 105%-150% hiccup mode, auto-recovery
- Over-voltage protection 115%~135%
- Working temperature and humidity -10℃~+60℃, 20%~90%RH
- Store temperature and humidity -20℃~+85℃, 10%~95%RH
- Application – CCTV Camera, PTZ, IR Illuminators, Video Process Equipment, etc
